HOW IT WORKS
Mechanical scrubbing. Chemical sanitization. Powered by your existing conveyor.
Brite Belt combines physical biofilm removal and chemical sanitization in a single passive system that runs during your normal sanitation downtime. No added labor. No conveyor modifications.
THE PROBLEM WITH MOST SYSTEMS
Most facilities are only solving half the problem.
Biofilm can't be killed — it has to be physically removed. Here's how common approaches fall short, and how Brite Belt fills the gap.
Manual Scrubbing
Physically removes biofilm but results depend entirely on who does it and how thoroughly. Inconsistent by nature — and labor-intensive every shift.
Steamer or Foamer
Kills surface pathogens and allergens through heat or chemical action. Does not physically remove the biofilm matrix — the belt recolonizes quickly.
Brite Belt
Mechanically removes biofilm on every belt revolution while simultaneously delivering your chemical of choice. Consistent. Passive. No added labor.
Brite Belt + Your Existing System
Brite Belt removes the biofilm matrix first — then your steamer or foamer can do its job properly. The two work better together than either does alone.
THE MECHANISM
Weight. Belt motion. Gravity-fed chemistry.
DOWNWARD PRESSURE
The unit's weight does the work.
The scrubber sits directly on the belt surface. Its own weight provides the cleaning pressure — no springs, no motors. Fill the reservoir fully to increase contact force, since the added liquid weight increases scrubbing intensity. Additional weights can be placed on top for aggressive applications.
MECHANICAL SCRUBBING
Stationary pad. Moving belt.

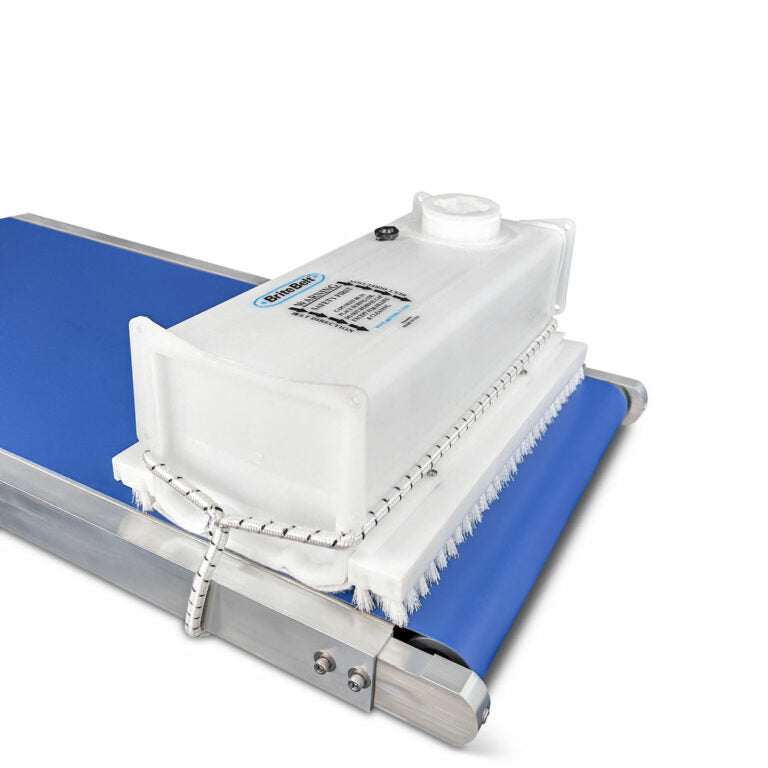

Bungee cords fasten the unit to the conveyor frame, keeping it stationary while the belt runs underneath at operating speed. That motion drives the Tech-Scrub Pad™ — a Formula 26 synthetic non-woven web, USDA-listed — against the belt surface on every revolution, physically breaking down biofilm.
CHEMICAL DELIVERY
Gravity-fed. Continuously saturated.
The 3+ gallon reservoir gravity-feeds pre-mixed solution through eight metered orifices along the leading edge, keeping the pad continuously saturated throughout the cleaning cycle. Compatible with alkaline detergents, acid detergents, chlorine, QAS, PAA, and other standard CIP chemicals. One fill lasts over two hours.
Setup in 4 Simple Steps
From unboxing to running in under an hour.
1
Attach the Pad
Fasten a fresh cleaning pad onto the bottom of the unit. No tools needed.
2
Add the Cleaning Solution
Fill the reservoir with your preferred cleaning or sanitizing chemical.
3
Secure the Unit with Bungee
Fasten the scrubber to the conveyor frame so it stays firmly in place.
4
Let the Conveyor Clean Itself
Turn on the line and allow the system to scrub while you focus on other tasks.

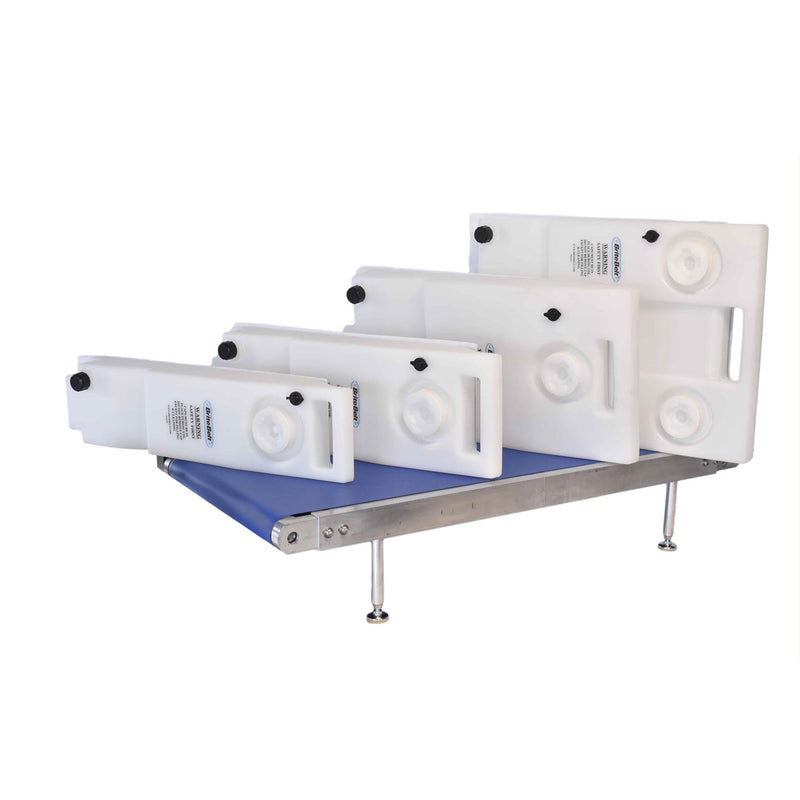

TWO SYSTEMS
Which unit fits your application?
STANDARD SCRUBBER
For everyday flat belt applications
- 22" scrubbing pad footprint — broad surface contact on every pass
- Pre-sized for 6", 8", 12", and 16" belt widths
- Tall 16" variant available for higher chemical capacity
- Food-grade polyethylene housing
- Best for: flat rubber, flat plastic conveyor belts
BRICK SCRUBBER
For complex belts and heavy-residue applications
- 6" concentrated footprint — more aggressive cleaning force per inch
- Brushes on leading and trailing edges penetrate crevices, hinge points, and link openings
- Custom-built from 4" to 96" wide — fits any conveyor
- Brush attachments available separately
- Best for: modular plastic, wire mesh, stainless wire, link belts
